⚡Image Processing Workflow

Let’s build a real image processing pipeline using Typeflow.
In this tutorial, we’ll build a workflow that:

loads an image → resizes it → converts to grayscale → adjusts brightness → applies watermark → saves the result

All of this will be designed visually in the Typeflow editor and executed deterministically through Python.

1️⃣ Create a New Project

typeflow setup imageflow
cd imageflow

This scaffolds your project with a virtual environment and structure like:

imageflow/
├── .typeflow/
├── src/
│   ├── nodes/
│   ├── classes/
│   └── __init__.py
├── workflow/
│   ├── workflow.yaml
│   └── dag.json
├── pyproject.toml
├── .gitignore
└── README.md

Then activate your virtual environment (created automatically by Typeflow):

source .venv/bin/activate   # or .\.venv\Scripts\activate on Windows

2️⃣ Add Required Dependency

We’ll need Pillow for image operations.

typeflow add pillow

3️⃣ Create Function Nodes

We’ll define five simple nodes for image transformations.
Each node has its own folder under src/nodes/ with a main.py file.

🧩 load_image

typeflow create-node load_image

Then open src/nodes/load_image/main.py:

from typeflow import node
from PIL import Image

@node()
def load_image(path: str) -> Image.Image:
    """Load image from a given path."""
    img = Image.open(path).convert("RGBA")
    return img

🧩 resize_image

typeflow create-node resize_image

Edit src/nodes/resize_image/main.py:

from typeflow import node
from PIL import Image
from typing import Tuple

@node()
def resize_image(img: Image.Image, size: Tuple[int, int], keep_aspect: bool = True) -> Image.Image:
    """Resize or thumbnail the image."""
    if keep_aspect:
        img.thumbnail(size)
        return img
    return img.resize(size)

🧩 grayscale

typeflow create-node grayscale

from typeflow import node
from PIL import Image

@node()
def grayscale(img: Image.Image) -> Image.Image:
    """Convert to grayscale while keeping RGBA mode."""
    return img.convert("L").convert("RGBA")

🧩 adjust_brightness

typeflow create-node adjust_brightness

from typeflow import node
from PIL import Image, ImageEnhance

@node()
def adjust_brightness(img: Image.Image, factor: float) -> Image.Image:
    """Adjust image brightness."""
    enhancer = ImageEnhance.Brightness(img)
    return enhancer.enhance(factor)

🧩 save_image

typeflow create-node save_image

from typeflow import node
from PIL import Image

@node()
def save_image(img: Image.Image, output_path: str) -> None:
    """Save image to a given path."""
    img.save(output_path)

4️⃣ Create a Class Node

Let’s define a reusable class that applies watermark text to any image.

typeflow create-class Watermark

Edit src/classes/Watermark.py:

from typeflow import node_class
from typing import Tuple
from PIL import Image, ImageDraw, ImageFont

@node_class
class Watermark:
    text: str
    position: Tuple[int, int] = (10, 10)
    opacity: int = 128
    font_size: int = 24

    def apply(self, img: Image.Image) -> Image.Image:
        """Apply watermark text to image."""
        overlay = Image.new("RGBA", img.size, (255, 255, 255, 0))
        draw = ImageDraw.Draw(overlay)

        try:
            font = ImageFont.truetype("arial.ttf", self.font_size)
        except Exception:
            font = ImageFont.load_default()

        draw.text(self.position, self.text, fill=(255, 255, 255, self.opacity), font=font)
        return Image.alpha_composite(img, overlay)

5️⃣ Validate All Nodes

Before using them, validate your definitions:

typeflow validate node
typeflow validate class

Each valid node or class will have a YAML descriptor generated inside .typeflow/.

6️⃣ Build the Workflow Visually

Launch the editor:

typeflow start-ui

Open http://localhost:3001

In the visual editor:

  1. Add Input Node → file_path node (if you want to upload file inside editor) or string_val node if you want to write the path of image.
  2. Connect to → load_image
  3. Add Input Node
    • tuple_val (for size of image for resize_image)
    • bool_val (for keep_aspect input to resize_image)
    • float_val (for factor value for adjust_brightness)
    • string_val (for text input to Watermark class)
    • int_val (for opacity input to Watermark class) (optional)
    • tuple_val (for position input to Watermark class) (optional)
    • int_val (for font-size input to Watermark class) (optional)
  4. Then → resize_image → grayscale → adjust_brightness
  5. Then drag Watermark on editor
  6. Double click on Watermark to add method apply. It will attach its method node to class.
  7. Connect adjust_brightness → Watermark.apply
  8. Finally connect → save_image
  9. Add an string_val Input node to specify your output file path. You can copy the folder path from ur laptop and paste it with added output image name.

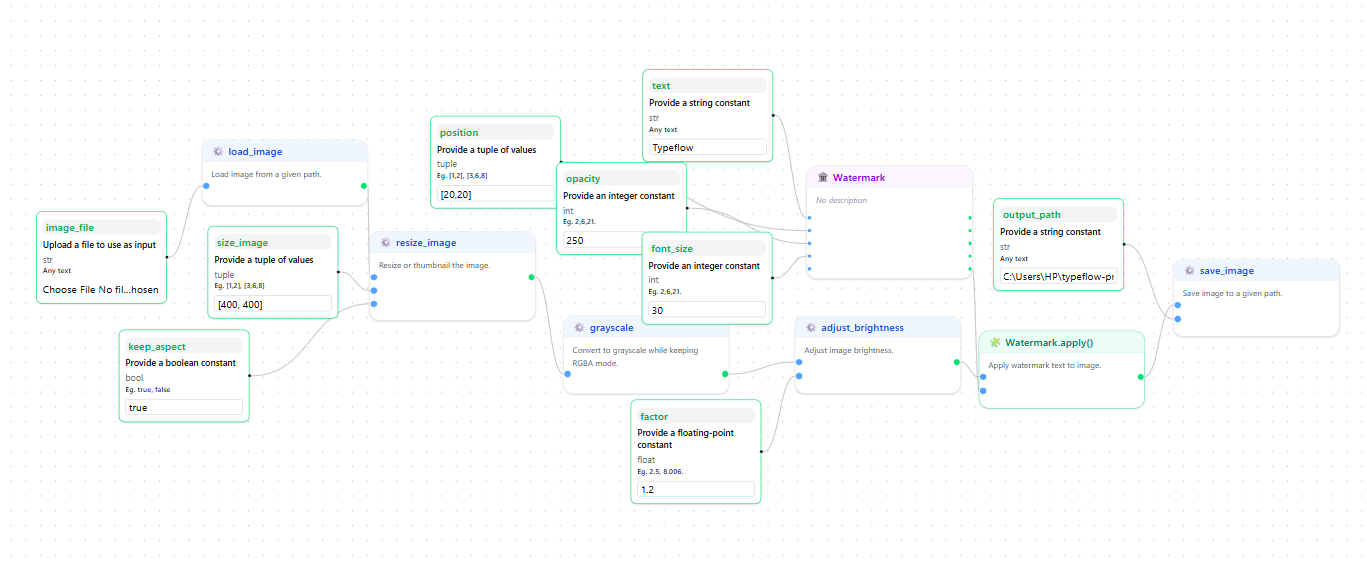

Your final DAG should like this. Typeflow Editor Home
Caption: The image processing pipeline.

Note: You can see the name of input nodes in graph are different. You can also change your input node names for visual clarity.

Hit Export to save the graph as workflow/dag.json.

7️⃣ Compile and Run

From terminal:

typeflow compile
typeflow generate
typeflow run

On compile, see type validation in your data flow between the edges, so you can catch any potential errors before running it. On generate, typeflow will create src/orchestrator.py script for transparency.

Run from Editor

Instead of compiling and using terminal, you can run directly inside the editor — hit Start, and Typeflow will do this behind ths scenes.:

  • Compile your DAG
  • Generate an orchestrator Python script
  • Run it in an async subprocess via FastAPI
  • Stream live node execution updates over SSE

8️⃣ Result

After execution, you’ll find your processed image in the specified output path —
resized, brightened, converted to grayscale, and watermarked with your custom text.

Example generated orchestrator (auto-created by Typeflow)

# Auto-generated workflow script

from src.classes.Watermark import Watermark
from src.nodes.adjust_brightness.main import adjust_brightness
from src.nodes.grayscale.main import grayscale
from src.nodes.load_image.main import load_image
from src.nodes.resize_image.main import resize_image
from src.nodes.save_image.main import save_image

file_input_1 = 'data/X_file_input_1.jpg'
bool_val_2 = True
tuple_val_3 = (400, 400)
float_val_4 = 1.2
string_val_5 = 'Typeflow'
tuple_val_6 = (20, 20)
int_val_7 = 250
int_val_8 = 30
string_val_1 = 'data/outputs/watermark.png'
load_image_out = load_image(path=file_input_1)
watermark_1 = Watermark(text=string_val_5, position=tuple_val_6, opacity=int_val_7, font_size=int_val_8)
resize_image_out = resize_image(img=load_image_out, keep_aspect=bool_val_2, size=tuple_val_3)
grayscale_out = grayscale(img=resize_image_out)
adjust_brightness_out = adjust_brightness(img=grayscale_out, factor=float_val_4)
watermark_1_apply_out = watermark_1.apply(img=adjust_brightness_out)
save_image_out = save_image(img=watermark_1_apply_out, output_path=string_val_1)

# End of generated workflow

✅ Done
You’ve successfully created a modular, type-safe workflow using Typeflow — all locally, with zero cloud dependency.

Output showcase in editor

In Editor, the Watermark.apply method outputs Image, so you can remove the save_image node (for removing just click on node and press DEL/DELETE/BACKSPACE button). And drag a image_output node, and connect Watermark.apply → image_output. And Press on Start button to see the image itself on editor. Note: Output nodes only work if you use Editor to run workflow by pressing Start button.

Next steps

  • Add more nodes to build complex data/AI pipelines
  • Experiment with class-based logic nodes
  • Or embed Typeflow in your own tools as an orchestrator backend

More examples

Check this repository to see a real example of typeflow usage: Skill AI
