Quickstart Guide

Welcome to Typeflow — a visual workflow engine for Python that lets you design, connect, and execute logic nodes in an explainable visual environment.

This quickstart walks you through building your first simple data-processing workflow — end-to-end.

---

1. Installation

Install Typeflow globally:

pip install typeflowapp

---

2. Setup a New Project

Create a new isolated Typeflow project:

typeflow setup my_project

This will:

• Create a new folder: my_project/
• Initialize a local .venv using uv
• Install Typeflow inside that isolated environment

Then, activate your environment:

cd my_project
. .venv/bin/activate        # macOS / Linux
# or
.\.venv\Scripts\activate    # Windows PowerShell

You’re now ready to create your first workflow.

---

3. Add a Dependency (Optional)

If your nodes need external packages, add them using:

typeflow add requests

This ensures dependencies are added directly into your project’s isolated environment.

---

4. Create a Node

Let’s create a simple text utility node that counts words in a string.

typeflow create-node word_counter

This creates:

src/nodes/word_counter/main.py

Now edit the file:

from typeflow import node

@node()
def word_counter(text: str) -> int:
    """Count the number of words in a given text."""
    return len(text.split())

Tip: Always use type hints and a docstring — they appear in the visual editor and improve validation.

---

5. Create a Class Node

Class nodes are stateful — ideal for reusable logic or configuration.

typeflow create-class TextFormatter

Then open:

src/classes/TextFormatter.py

Replace its content with:

from typeflow import node_class

@node_class
class TextFormatter:
    prefix: str = ""
    suffix: str = ""

    def format(self, text: str) -> str:
        """Add prefix and suffix to a given text."""
        return f"{self.prefix} {text} {self.suffix}"

---

6. Validate Nodes & Classes

Before using them, validate:

typeflow validate node
typeflow validate class

You should see:

All nodes and classes validated successfully.

This ensures everything is correctly registered in .typeflow/.

---

7. Open the Visual Editor

Launch the editor:

typeflow start-ui

Typeflow starts a FastAPI server that serves the Next.js React Flow UI at:

http://localhost:3001

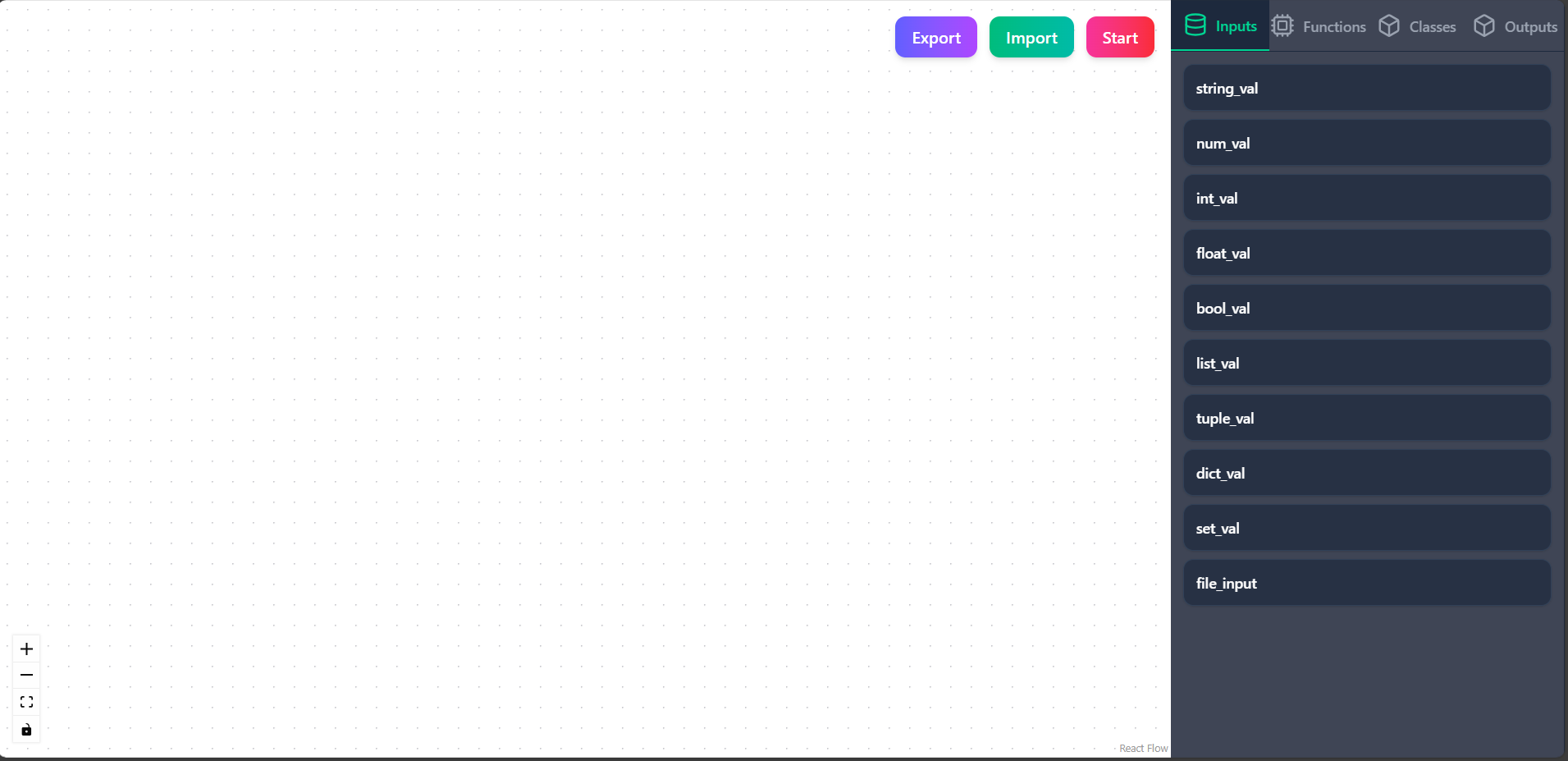

Caption: The visual workflow editor with node sidebar and canvas.

Now you can:

• Drag your word_counter and TextFormatter nodes from the sidebar
• Connect them visually
• Add an Input Node and an Output Node
• Use sidebar tabs: Input / Function / Class / Output

Note: Double-click on TextFormatter node to see list of methods and click it to add method node in editor. Double click again to hide the list.

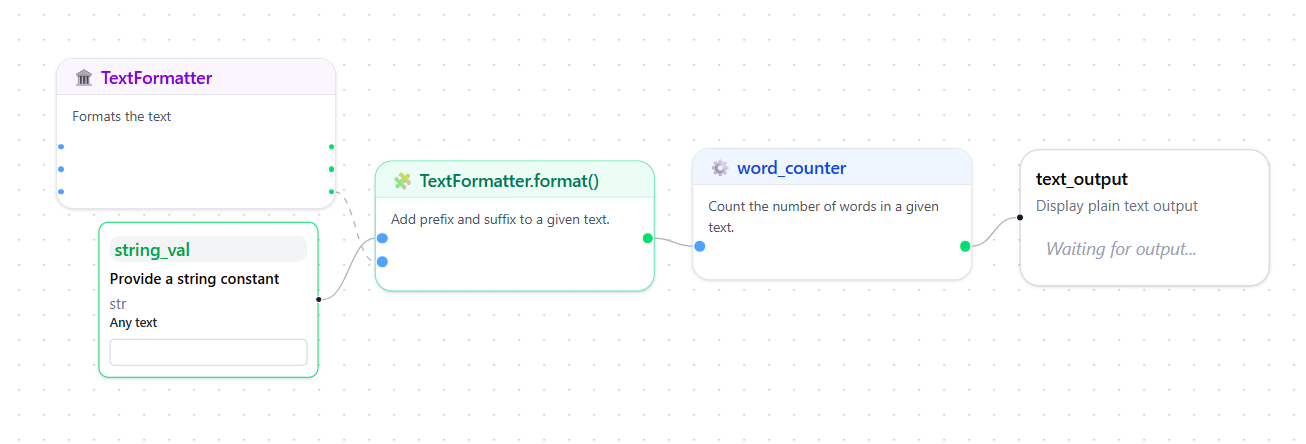

Caption: “Input string val → TextFormatter.format → WordCounter → Output text output” workflow.

Once you have built a similar DAG. Now you can input something in string_val. Then click on Export button.

---

8. Compile and Generate

Once your DAG (graph) is exported. You can stop the fastapi server or use another terminal to compile and generate its runnable orchestrator script:

typeflow compile
typeflow generate

You’ll see:

Validating DAG...

Generating orchestrator script...
Orchestrator generated at: src/orchestrator.py

---

9. Run the Workflow

You can run it in two ways:

A. From the Editor

Click the Start button on the top bar.
This triggers live execution with real-time SSE updates.

As the nodes run, you’ll see progress streaming in the editor console.

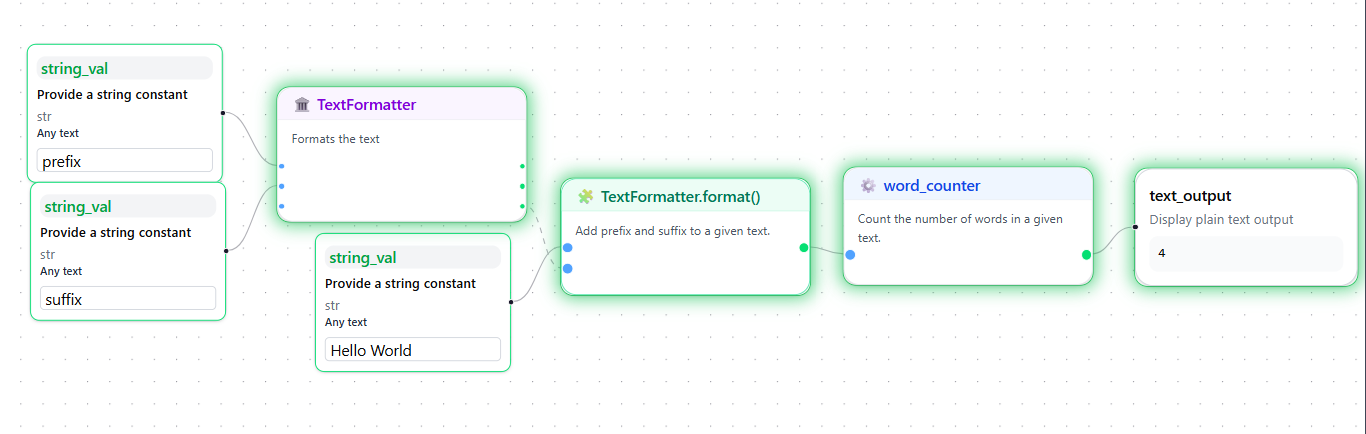

Caption: Live workflow execution updates via SSE inside the editor.

Note: When you run from editor, you don't need to run compile and generate commands at terminal. Start button will take the dag, compile, generate and run for you. You can just watch your workflow being compiled. And iterate over it, change inputs and see live run.

A. From Terminal

typeflow run

Runs the orchestrator (python -m src.orchestrator).

Note: If you want to run from terminal, and want to see the output in terminal like you saw in editor. You need to replace the Output node of editor with your custom node that takes the integer return of word_counter and prints in console/terminal. Then go back in editor, refresh it, to see that node added in Functions Sidebar tab, drag it and connect: word_count:returns->console:input. (Assuming your custom node name is console that takes input arg and prints in terminal)

---

10. Output

Your Output Node displays results directly inside the editor.

Connect your nodes like this:

Input Text → TextFormatter.format → WordCounter → Output

Run it with:

Input: "Typeflow makes visual programming fun"

Output:

Word Count: 5

---

You’ve Built Your First Workflow

You just:

1. Created a Typeflow project
2. Added custom nodes
3. Validated and visualized them
4. Compiled a DAG
5. Executed it live with SSE-powered updates

---

Next Steps

• Check out examples.md for a more advanced image-processing pipeline
• Explore Node Definition Guide and Class Node Guide

---
